Fire Pit Kits

Fire pit kits require a level, hard surface that can support the weight. You can install on combustible surfaces like wood decking or non-combustible materials like concrete, brick, or stone. Avoid grass, artificial turf, carpet, or uneven surfaces as these block airflow underneath the appliance.

Drop-in installation fire pit kits from EcoSmart Fire produce between 4 kW [15,000 BTU/h] and 13 kW [45,000 BTU/h] on bioethanol, designed to warm spaces from 60 m² [646 ft²] to 180 m² [1,938 ft²] depending on the kit configuration.

Compact round and square kits run a single AB8 burner at 6 kW [20,433 BTU/h], providing comfortable ambient warmth for a seating zone up to 60 m² [646 ft²]. Linear kits with a single XL900 burner produce 4 kW [15,000 BTU/h] across the same 60 m² [646 ft²] coverage area, with multi-burner linear configurations scaling to 9 kW [30,000 BTU/h] and 13 kW [45,000 BTU/h] for larger spaces.

Bioethanol kits are calibrated for ambient warmth and personal comfort in mild-to-moderate outdoor conditions. For exposed areas or colder climates, gas configurations deliver substantially more heat: a single gas burner produces 19 kW [65,000 BTU/h], with multi-burner gas kits scaling accordingly.

All figures are indicative and vary with installation conditions, wind, and fuel composition.

EcoSmart Fire's drop-in gas fire pit kits are designed exclusively for outdoor use. These self-contained units install into a prepared garden or patio surface without permanent fixture requirements, engineered for open-air performance and durability.

Gas combustion performs optimally in environments where ventilation is unrestricted. EcoSmart Fire gas kits feature Grade 304 stainless steel burners and weather-resistant construction, including toughened glass components and high-temperature coatings.

Gas models (propane and natural gas) deliver 65,000 BTU/h of heat output per burner, designed for open-air spaces where heat dispersal and airflow are unrestricted. EcoSmart Fire gas kits are certified to ANSI Z21.97-2017, CSA 2.41-2017, and Gas Appliance Regulation 2016/426 across the USA, Canada, Europe, and the UK, meeting global safety standards for outdoor installation.

Drop-in installation gives you a self-contained fire pit module that fits straight into a surround you've designed, so sizing starts with how you'll use the space and what shape the surround needs to be. Pick the shape that matches the room you're creating, then scale to the seating plan and heating coverage you want.

For intimate courtyards, balconies, or a coffee-table-style centrepiece around four to six seats, a round or square kit at roughly 623-630 mm [24.5-24.8 in] across suits the scale well. Each uses a single AB8 burner delivering 20,433 BTU/h and warming up to 60 m² [646 ft²], ideal as a focal point in a compact setting.

For longer lounge arrangements or a linear bench down one side of a terrace, a 1,196-1,630 mm [47-64 in] linear kit gives you that long, sculptural flame without overwhelming the space, running a single XL900 burner with 60 m² [646 ft²] coverage.

For expansive outdoor areas, pool decks, or a piece that doubles as a room divider, step up to a 2,287 mm [90 in] linear kit with twin XL900s covering around 120 m² [1,292 ft²], or the 3,375 mm [132.9 in] three-burner for a statement flame across 180 m² [1,938 ft²].

A useful rule of thumb: match the fire pit's length to roughly a third of your seating zone's longest side. The weather-resistant stainless-steel and toughened-glass construction holds up year-round, giving you design freedom to build the surround in stone, concrete, timber, or tile.

Drop-in installation gas fire pit kits from EcoSmart Fire are independently tested and listed to the core safety standards across four major markets: the United States, Canada, the European Union, and the United Kingdom.

In North America, the gas burners are UL/ULC listed to ANSI Z21.97-2017 and CSA 2.41-2017, the harmonised standard for outdoor decorative gas appliances in the US and Canada. These tests assess construction integrity, gas pressure performance, burner adjustment, electrical wiring, and thermostat function. UL/ULC listing means an independent, accredited laboratory has verified compliance, satisfying insurance requirements and building code expectations across most North American jurisdictions.

For European and UK markets, the kits comply with Gas Appliance Regulation 2016/426, carrying CE marking for EU countries and UKCA marking for the UK. These designations confirm the product meets that jurisdiction's mandatory safety, energy, and labelling requirements for gas appliances.

Holding certification across all four markets confirms the product has been validated to consistent safety standards wherever it is installed, giving architects, builders, and homeowners a reliable compliance baseline for residential and commercial projects.

EcoSmart fire pit kits with drop-in installation are available in three fuel configurations: bioethanol, liquid propane (LP), and natural gas (NG). Each suits a different kind of project, so the right choice depends on where the pit will live and how you want to use it.

Bioethanol is the most flexible option. It runs from a self-contained AB8 or XL900 burner with no plumbing or gas line, so the same kit is approved for indoor or outdoor installation (round and square kits can be used indoors with the Indoor Safety Tray and AB8 Burner Efficiency Ring, in line with EN 16647). Burn times range from 7 to 13 hours, depending on the burner model and output setting, with a jerry can, fire lighter, lighting rod, and black glass charcoal included in every kit. The flame is clean-burning, with no smoke, soot, or ash.

Liquid propane suits colder climates and sites without a gas line. It delivers a higher heat output and draws from a standard LP bottle, which keeps the kit fully portable.

Natural gas suits permanent installations where convenience is the priority. Once plumbed in, it runs indefinitely with no refuelling, making it a strong fit for weather-resistant outdoor rooms designed around a permanent centrepiece.

LP and NG models are outdoor-only and are available as separate configurations.

EcoSmart Fire pit kits are designed for easy installation in just 3-6 simple steps with everything included. However, professional installation is recommended to ensure proper clearances, structural support, and compliance with local building codes, especially for permanent installations requiring non-combustible surrounds.

Fire pit kits significantly reduce installation costs by eliminating custom fabrication requirements. The all-in-one kits include everything needed for installation in three simple steps, removing expenses for specialised welding, individual component sourcing, and multiple contractor coordination that custom builds typically require.

Drop-in installation fire pit kits from EcoSmart Fire arrive as complete, ready-to-use packages. Every kit includes a stainless steel tray and burner, decorative black glass charcoal, a 5-litre jerry can, fire lighter, lighting rod, and a bottle adaptor for transferring fuel from e-NRG bottles to the burner.

Linear kits also include XL baffles, which stabilise the flame and improve fuel efficiency across the elongated burner.

Optional accessories (cover plates, fire screens, and silicone burner covers) are available separately by kit type to protect the burner when not in use and customise the visual presentation.

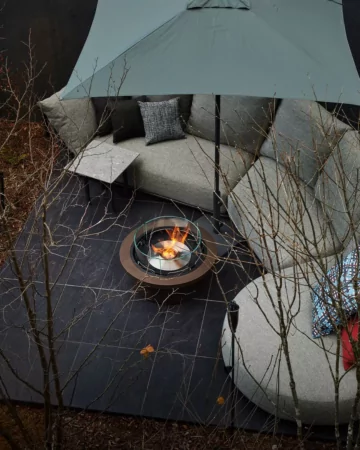

Yes, fire pit kits are ideal for small balconies and courtyards. EcoSmart Fire’s compact kit designs, such as the Round 20 with a 630 × 630 mm footprint and lightweight 17.24 kg construction, are purpose-built for intimate spaces. Drop-in installation means you simply place the kit on a non-combustible surface; no venting ducts, gas lines, or structural modification required. This makes bioethanol kits the designed solution for space-constrained outdoor areas where traditional fireplaces would be impractical.

The clean combustion of bioethanol brings additional confidence to small-space installations. You’ll have no ash, soot, or smoke, which matters when balconies are close to neighbours’ windows or when your courtyard flows directly into your home. The compact footprint means you’re not surrendering usable space, and the self-contained design offers complete design freedom. Whether you’re anchoring a corner, framing a dining nook, or creating a focal point in a modest courtyard, the kit adapts to your layout without the infrastructure demands of traditional fireplaces.
