Flex 140PN.BXL Peninsula Fireplace Insert

Starts at $17,595.00
Write a Review

A multi-view peninsula fireplace delivers a flame to multiple rooms.

Designed as a room divider, the Peninsula Fireplace Insert features three open sides, enabling the mesmerising flame to be viewed from any direction - the front, back and open side.

The three transparent sides create an eye-catching focal point and provide the perfect solution to heating multiple rooms, to integrating within commercial/hospitality spaces and dividing open floor plans.

The Flex 140PN.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 3 of our ever-popular XL900 Burners. With an overall heating capacity of 1938ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.

Manufacturer approved surround for the UL Listed XL900 burner.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner In Stock: 3 days
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel In Stock: 3 days
Stainless Steel  - Studio Image by MAD Design Group
Black In Transit: 24 days + $1,500.00
Black  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 12-16 wks +$275.00
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Backorder: 12-16 wks +$275.00
  • Included Accessories:
  • Jerry Can 1.25 Gal
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Add e-NRG Bioethanol

How much fuel do I need?
e-NRG Bioethanol Bioethanol Fuel - Studio Image by MAD Design Group
e-NRG Bioethanol In Stock: Ready to ship From $119.00
  • 4 Gal. 1 carton +$119.00
  • 8 Gal. 2 cartons +$233.00
  • 16 Gal. 4 cartons +$452.00
  • 20 Gal. 5 cartons +$550.00
  • 40 Gal. 10 cartons +$1,012.00
  • 80 Gal. 20 cartons +$1,666.00
  • 180 Gal. 45 cartons +$3,481.00
*Quantities of 4, 8, 16 and 20 Gallons ship on quart-sized bottles.

Order Summary

$17,595.00 Taxes may apply* Tax Information
Free Shipping Standard Delivery*
Continental USA
Shipping Information
Unspecified Unspecified Ship Times
or use our express checkout options
* Taxes will be calculated at the checkout. Tax Information * Standard Shipping provides ground delivery to the curb. Shipping Information * All times, dates, and inventory levels are subject to change at anytime.

Inspiration

EcoSmart FLEX_68PNL.BXR.jpg Open Gallery
Digital Render
ESF.FX.140PN.BX2 living_area.jpg Open Gallery
Digital Render
ESF.FX.18PN living_area.jpg Open Gallery
Digital Render

Key Features

Application

Indoor or outdoor single room application. With two open side, view the flame from the left and the front.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No gas or electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and easy assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind screen

Included integrated windscreen sits flush behind frame.

Prop 65 warning for California consumers. Learn More

Technical Specifications

Construction

  • Weight 376lb [171kg]
  • Model Dimensions in [mm] W 146in [3712mm] D 13.9in [354mm] H 31.8in [807mm]
  • Viewing Area in [mm] W 142in [3612mm] D 13.9in [352mm] H 19.8in [502mm]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
2.4 Gal
9 L
Heats on Average
646ft2
60m2
Minimal Room
3885ft3
110m3
Thermal Output
15000 BTU/h
4.4 kW 16 MJ/h
Burn Time
8-13h
2.4 Gallons
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

FAQ's

View All

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries - many hardware stores even stock it.

How do I clean my EcoSmart Fire ethanol burner?

Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing. View this video of the simple cleaning process here: https://youtu.be/VqHg9mXOc0U

Note: Stainless steel will rust or corrode over time if contamination or debris is not cleaned or removed immediately. When not in use, we recommend that you protect your ethanol fireplace from water damage or corrosion with a protective cover and the regular use of the burner lid included with your model.

Can EcoSmart Fires be installed everywhere?

Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

Is their heat output similar to a gas heater?

Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains

What are some key benefits – compared to other heating options?

When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.

You May Also Like

Peninsula
Flex 78PN.BX2 Peninsula - Studio Image by EcoSmart Fire
Flex 78PN.BX2 Peninsula - In-Situ Image by EcoSmart Fire
Flex 78PN.BX2 Peninsula Fireplace Insert
EcoSmart Fire $9,895.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 18PN Peninsula - Studio Image by EcoSmart Fire
Flex 18PN Peninsula - In-Situ Image by EcoSmart Fire
Flex 18PN Peninsula Fireplace Insert
EcoSmart Fire $2,195.00 The entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Flex 50PN Peninsula - Studio Image by EcoSmart Fire
Flex 50PN Peninsula - In-Situ Image by EcoSmart Fire
Flex 50PN Peninsula Fireplace Insert
EcoSmart Fire $6,595.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 68PN.BXL Peninsula - Studio Image by EcoSmart Fire
Flex 68PN.BXL Peninsula - In-Situ Image by EcoSmart Fire
Flex 68PN.BXL Peninsula Fireplace Insert
EcoSmart Fire $8,795.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 60PN.BXL Peninsula - Studio Image by EcoSmart Fire
Flex 60PN.BXL Peninsula - In-Situ Image by EcoSmart Fire
Flex 60PN.BXL Peninsula Fireplace Insert
EcoSmart Fire $7,695.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 158PN.BX2 Peninsula - Studio Image by EcoSmart Fire
Flex 158PN.BX2 Peninsula - In-Situ Image by EcoSmart Fire
Flex 158PN.BX2 Peninsula Fireplace Insert
EcoSmart Fire $19,795.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 104PN.BX2 Peninsula - Studio Image by EcoSmart Fire
Flex 104PN.BX2 Peninsula - In-Situ Image by EcoSmart Fire
Flex 104PN.BX2 Peninsula Fireplace Insert
EcoSmart Fire $13,195.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 86PN.BXR Peninsula - Studio Image by EcoSmart Fire
Flex 86PN.BXR Peninsula - In-Situ Image by EcoSmart Fire
Flex 86PN.BXR Peninsula Fireplace Insert
EcoSmart Fire $10,995.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 122PN.BXR Peninsula - Studio Image by EcoSmart Fire
Flex 122PN.BXR Peninsula - In-Situ Image by EcoSmart Fire
Flex 122PN.BXR Peninsula Fireplace Insert
EcoSmart Fire $15,395.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 50PN.BXR Peninsula - Studio Image by EcoSmart Fire
Flex 50PN.BXR Peninsula - In-Situ Image by EcoSmart Fire
Flex 50PN.BXR Peninsula Fireplace Insert
EcoSmart Fire $6,595.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.
Flex 122PN.BXL Peninsula - Studio Image by EcoSmart Fire
Flex 122PN.BXL Peninsula - In-Situ Image by EcoSmart Fire
Flex 122PN.BXL Peninsula Fireplace Insert
EcoSmart Fire $15,395.00 EcoSmart Fire peninsula fireplaces are the focal point of a room - allowing the flame clearly seen from any direction.

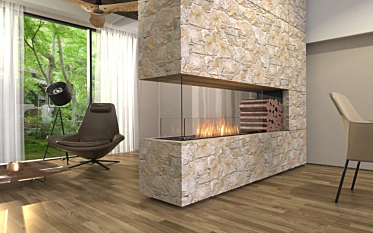

Flex 68PN.BXR Peninsula - Studio Image by EcoSmart Fire
